VBA Matrix – Create & More

This tutorial will show you how to  create a matrix using an Array in VBA.

A matrix is a rectangular array of numbers with the same amount of Rows and Columns. You can create a matrix in VBA by populating Array variables and using VBA Loops.

Creating a Matrix in VBA

Sub CreateSimpleMatrix()
   Dim matrix() As Integer
   Dim x, i, j, k As Integer
're-dim the size of the array
   ReDim matrix(1 To 3, 1 To 3) As Integer
   x = 1
   For i = 1 To 3
      For j = 1 To 3
         matrix(i, j) = x
         x = (x + 1)
      Next j
   Next i
' return result to sheet in one go
   Range("A1:C3") = matrix
End Sub

Running the procedure above will return a simple matrix to Range(“A1:C3”) to your worksheet.

vba matrix simple

Convert Single Row Vector into a Matrix

Consider the column of numbers below. You may at some stage wish to convert a column of numbers to a matrix.

vba matrix convert

Using the function below, we can create a matrix from the list of numbers.

Function Create_Matrix(Vector_Range As Range, No_Of_Cols_in_output As Integer, No_of_Rows_in_output As Integer) As Variant
   ReDim Temp_Array(1 To No_Of_Cols_in_output, 1 To No_of_Rows_in_output)
   Dim No_Of_Elements_In_Vector As Integer
   Dim Col_Count As Integer, Row_Count As Integer

   No_Of_Elements_In_Vector = Vector_Range.Rows.Count

'Eliminate NULL Conditions
   If Vector_Range Is Nothing Then Exit Function
   If No_Of_Cols_in_output = 0 Then Exit Function
   If No_of_Rows_in_output = 0 Then Exit Function
   If No_Of_Elements_In_Vector = 0 Then Exit Function

   For Col_Count = 1 To No_Of_Cols_in_output
      For Row_Count = 1 To No_of_Rows_in_output
         Temp_Array(Col_Count, Row_Count) = Vector_Range.Cells(((No_of_Rows_in_output) * (Col_Count - 1) + Row_Count), 1)
      Next Row_Count
   Next Col_Count
   Create_Matrix = Temp_Array

End Function

We can create the matrix in our Excel sheet, by calling the function above.

Sub ConvertToMatrix()
   Range("C1:H2") = Create_Matrix(Range("A1:A10"), 2, 6)
End Sub

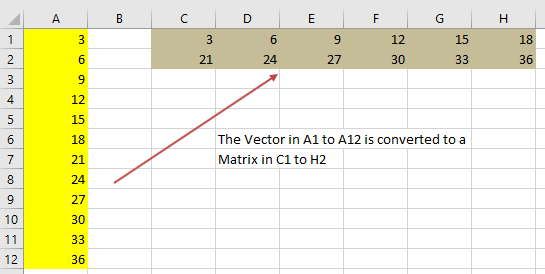

vba vector to matrix

Convert a Matrix into a Single Row Vector

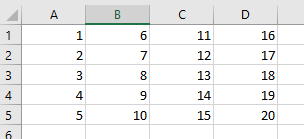

Alternatively, you may want to convert a Matrix into a Single row. Consider the Matrix below.

vba-matrix-2dim

Using the function below, we can convert this into a single dimension array.

Function Create_Vector(Matrix_Range As Range) As Variant
   Dim No_of_Cols As Integer, No_Of_Rows As Integer
   Dim i As Integer
   Dim j As Integer
'pick up the rows and columns from the matrix
   No_of_Cols = Matrix_Range.Columns.Count
   No_Of_Rows = Matrix_Range.Rows.Count
   ReDim Temp_Array(No_of_Cols * No_Of_Rows)
'Eliminate NULL Conditions
   If Matrix_Range Is Nothing Then Exit Function
   If No_of_Cols = 0 Then Exit Function
   If No_Of_Rows = 0 Then Exit Function
'loop through the array - the first element
   For j = 1 To No_Of_Rows
'now loop through the second element
      For i = 0 To No_of_Cols - 1
'assign to a single dimension temporary array
         Temp_Array((i * No_Of_Rows) + j) = Matrix_Range.Cells(j, i + 1)
      Next i
   Next j
   Create_Vector = Temp_Array
End Function

We can now call this function using the procedure below.

Sub GenerateVector()
   Dim Vector() As Variant
   Dim k As Integer
   Dim No_of_Elements
'get the array
   Vector = Create_Vector(Sheets("Sheet1").Range("A1:D5"))
'loop through the array and populate the sheet
   For k = 0 To UBound(Vector) - 1
      Sheets("Sheet1").Range("G1").Offset(k, 0).Value = Vector(k + 1)
   Next k
End Sub

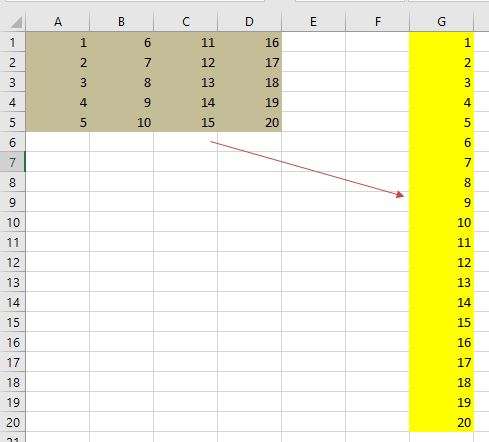

This procedure will return the following result.

vba matrix to vector

Using the WorksheetFunction.MMULT to create a Matrix Array

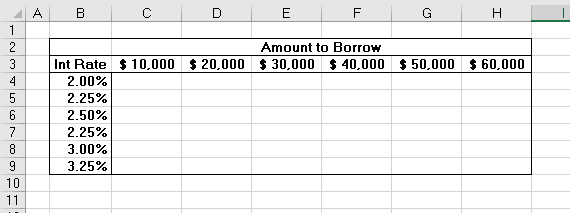

Consider the following spreadsheet.

vba-matrix-empty-interest

We can use the procedure below to calculate the interest amount for the grid above based on the interest rate and the amount the person wants to borrow.

Sub UseMMULT()
   Dim rngIntRate As Range
   Dim rngAmtLoan As Range
   Dim Result() As Variant
'populate our range objects
   Set rngIntRate = Range("B4:B9")
   Set rngAmtLoan = Range("C3:H3")
'use the MMULT formula to fill the result array
   Result = WorksheetFunction.MMult(rngIntRate, rngAmtLoan)
'populate the sheet
   Range("C4:H9") = Result
End Sub

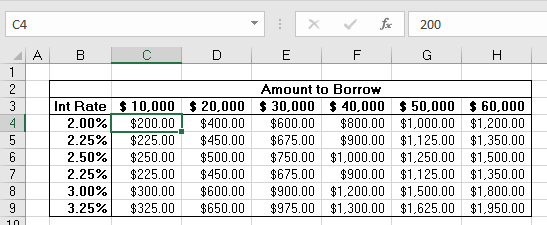

vba matrix filled

You will notice in the sheet above, that procedure above populates the cells with values rather than formulas – see C4 in the above graphic – it has the value 200 in it, not a formula.  Using the WorksheetFunction method always returns a static value to the worksheet and not a formula.  This means that should the interest rate or loan amount change, the corresponding values in the filled in matrix WILL NOT change.

Instead of using the WorksheetFunction.MMULT, you can use VBA to apply the MMULT Function to a cell using the FormulaArray method.

Sub InsertMMULT()
   Range("C4:H9").FormulaArray = "=MMULT(B4:B9,C3:H3)"
End Sub

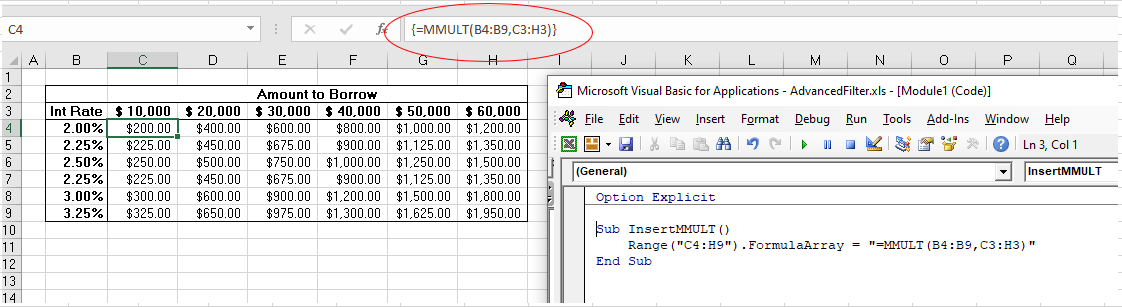

Notice that now when the spreadsheet is populated, a formula is used in the cells.

vba matrix formula array
