VBA – WinHttpRequest with Login and Password

This article demonstrates how to use VBA for a WinHttpRequest with Login and Password.

WinHTTP Request – Late Binding

1. You can declare your WinHttpRequest variable as an object which means that you do not have to add a reference to your VBA project in order for your code to work.

Dim objWinHTTP As Object
Set objWinHTTP = CreateObject("WinHttp.WinHttpRequest.5.1")

2. Once you have declared your object, you can assign the URL you are targeting to a string variable and then send a GET request.

Dim url As String
url = "https://seller-api.xyz.com/v1/sales/"
objWinHTTP.Open "GET", url, False

3. At this stage, depending on the API that you are targeting, you can set you request header and /or credentials where you would change USERNAME and PASSWORD to the username and password provided.

objWinHTTP.setRequestHeader "Accept", "application/json"
objWinHTTP.SetCredentials "USERNAME", "PASSWORD", HTTPREQUEST_SETCREDENTIALS_FOR_SERVER

4. You can then send the request.

objWinHTTP.Send

5. A message box can return the response to the request.

WinHTTP MsgBox objWinHTTP.ResponseText

6. Finally, you can clear the object variable.

Set objWinHTTP = Nothing

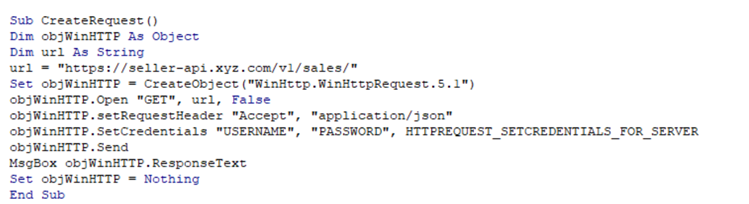

The entire code should look like the example below:

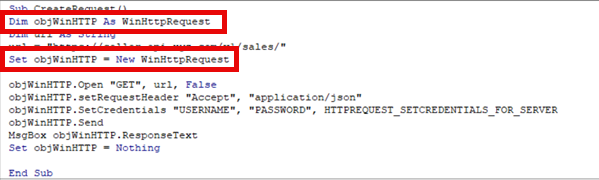

Request – Early Binding

To use early binding, we need to replace the variable that is set to an object as a WinHttpRequest object.

Dim objWinHTTP As WinHttpRequest
Set objWinHTTP = New WinHttpRequest

In order to do this, you need to add the following reference to your VBA project.

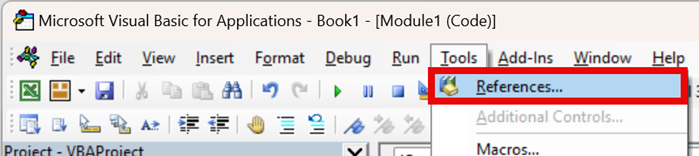

1. In the VBE, in the menu, select Tools > References.

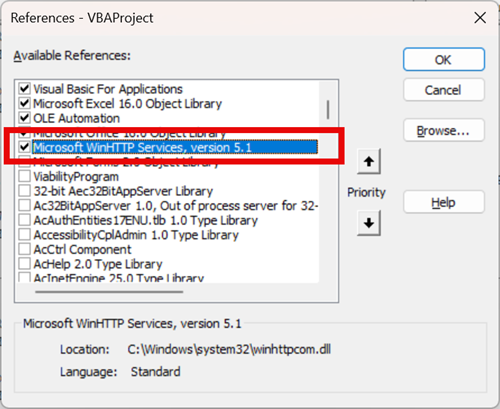

2. Select Microsoft WinHTTP Services, version 5.1 and then click OK.

3. Now, in your code, declare your object as a WinHttpRequest and then set the object as a New WinHttpRequest.

Notes:

Set a reference to Microsoft WinHTTP Services

Replace USERNAME and PASSWORD with your own info.

This returns the XML to a msgbox for demonstration, you can import it a map or load it to a MSXML2.DOMDocument(I’ve got working code, I’m still experimenting, I’ll follow up). Here is a snippet of the msgbox:
